Veterinary DR D100 Vet [SINOHERO]

Veterinary DR D100 Vet

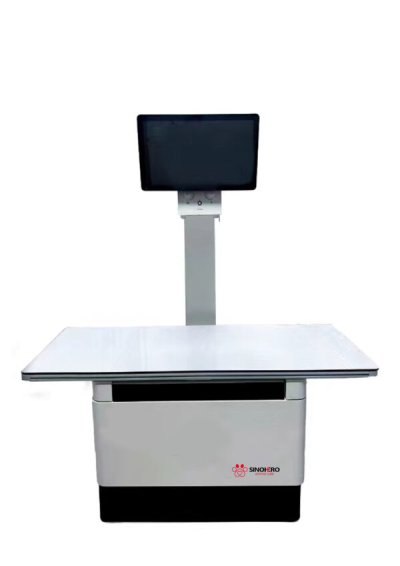

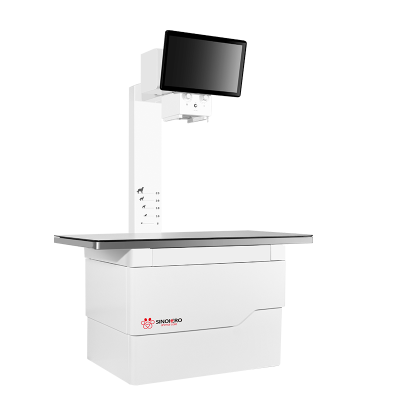

The D100 Vet Digital X-Ray Imaging System by Sinohero Animal Care is a cutting-edge radiography solution designed for veterinary use. It features high efficiency, cloud image storage, and intelligent design for easy operation.

Key Features:

• High Efficiency: Industrial capacitive touch screen for single-person operation.

• Cloud Storage: Multi-terminal diagnostic image management.

• Intelligent Design: One-key switch, voice control exposure, and body thickness visualization.

Technical Specifications:

• X-Ray Tube: 125 kV max voltage, 0.5/1.0 mm focus.

• High Voltage Generator: 110/220 VAC input, 32 kW output.

• Flat Panel Detector: 43×43 cm, 3072×3072 pixels, 139 µm pixel pitch.

Installation Requirements:

• Power: 110/220 VAC, 10% grounding.

• Space: Minimum door width 65 cm, room size 2 m×1.5 m.

The D100 Vet Digital X-Ray Imaging System, designed by Sinohero Animal Care, is a state-of-the-art radiography solution tailored for veterinary use. This system combines high efficiency, advanced imaging technology, and user-friendly design, ensuring exceptional diagnostic performance and ease of operation.

Key Features and Advantages:

• High Efficiency: Equipped with an industrial capacitive touch screen, the D100 Vet allows for single-person operation directly at the bedside, streamlining the diagnostic process.

• Cloud Image Storage: Enables multi-terminal diagnostic image management with both in-hospital and mobile access, ensuring flexibility and convenience.

• Humanized Intelligent Design: Features a one-key switch for easy operation, voice control exposure, and body thickness visualization for precise imaging.

Technical Specifications:

• X-Ray Tube:
  • Maximum Voltage: 125 kV

  • Size Focus: 0.5/1.0 mm

  • Thermal Capacity: 140 kHU

  • Anode Input Power: Small Focus 10 kW / Large Focus 30 kW
• High Voltage Generator:
  • Input Power Voltage: 110/220 VAC, 10 A

  • Maximum Output Power: 32 kW

  • kV Range: 40-125 kV (±1%±1 kV)

  • mA Range: 10-400 mA (±1%±1 kV)

  • Exposure Time: 0.001-6.3 s

• Flat Panel Detector:
  • Scintillator: Amorphous Silicon with CsI (Cesium Iodide)

  • Image Size/Pixel Matrix: 43×43 cm, 3072×3072

  • Pixel Pitch: 139 µm

  • A/D Conversion: 16 bit

  • Spatial Resolution: 3.6 LP/mm

Installation Requirements:

• Power Supply Requirements: 110/220 VAC, 10%, grounding with more than 4 square millimeters.

• Size Requirements: Minimum Door Width: 65 cm, Minimum Room Size: 2 m×1.5 m

Product Specifications:

• Weight: 180 kg

• Size: 195 cm×140 cm×90 cm

Additional Features:

• Table Size: 1400×700 mm
  • Table Surface Material: Phenolic Board

  • Horizontal and Longitudinal Movements: 75±10 mm, 200±10 mm

  • Load Weight: 200 kg
• Serviceability: Easy after-sales service with a modular circuit and the first three-door rack design.
• Durability: Industrial-grade PC hardware with a sealed design to prevent dust and hair intrusion.
• Construction: Extra thick steel plate with high precision machining, medical grade spray, anti-rust, and anti-aging properties.

The D100 Vet Digital X-Ray Imaging System is a comprehensive, reliable, and efficient solution for veterinary radiography, ensuring high-quality diagnostic images and user convenience.
