Veterinary Anesthesia Machine SA-10B Vet [SINOHERO]

Veterinary Anesthesia Machine SA-10B Vet

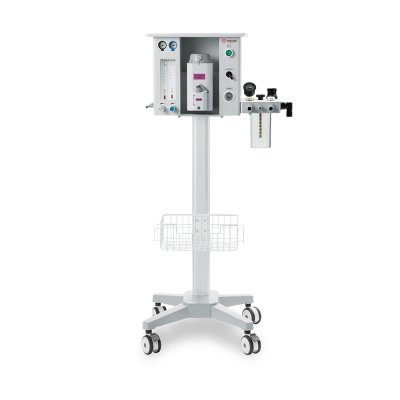

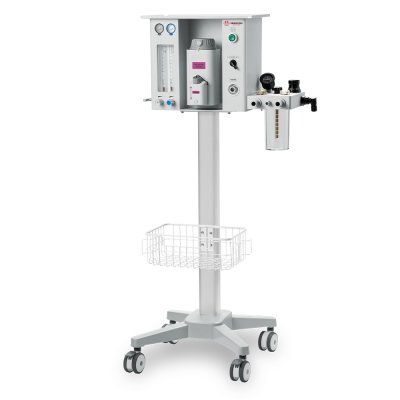

The SA-10B Vet Veterinary Anesthesia Machine by Sinohero is a state-of-the-art device tailored for veterinary use. Lightweight and compact, it offers precise control over anesthesia delivery, supporting multiple anesthetic agents and ensuring safety with an efficient scavenging system. Ideal for any veterinary clinic looking to enhance their anesthesia capabilities.

• Weight: 52 kg

• Dimensions: 1193 mm (H) x 480 mm (W) x 634 mm (D)

• Gas Type: Air, Oxygen

• Vaporizer: Supports Isoflurane, Sevoflurane, Enflurane

• Flow Range: 25 L/min 75 L/min

• AGSS: Active and Passive options

• Environmental Specs: Operation (0°C 40°C), Storage (-20°C 55°C)

The SA-10B Vet Veterinary Anesthesia Machine by Sinohero is a cutting-edge solution designed to provide safe and efficient anesthesia for veterinary practices. This machine combines advanced technology with user-friendly features, ensuring precise control over anesthesia delivery.

Key Features:

• Lightweight and Portable: Weighs only 52 kg, making it easy to move and operate in various clinical settings.

• Compact Design: Dimensions of 1193 mm (height) x 480 mm (width) x 634 mm (depth), fitting comfortably in any veterinary clinic.

• Versatile Gas Supply: Compatible with air and oxygen, with a broad pressure range from 280 kPa to 600 kPa.

• Advanced Vaporizer: Supports multiple anesthetic agents including Isoflurane and Sevoflurane with accurate concentration control.

• Efficient Scavenging System: Active and passive AGSS options to ensure a safe working environment by effectively removing waste gases.

• Reliable Breathing System: Minimal system leakage (<100 mL/min) and customizable connectors for different patient sizes.

• Robust Pneumatic System: Equipped with NIST or DISS connectors and a pressure gauge range up to 1000 kPa.

• Enhanced Safety Features: Includes an oxygen flush with a flow range of 25 L/min to 75 L/min.

Technical Specifications:

• Physical Specifications:
  • Weight: 52 kg

  • Dimensions: 1193 mm (height) x 480 mm (width) x 634 mm (depth)

  • Castors: 4 castors, 2 with brakes

  • Top Shelf: 425 mm (length) x 274 mm (width), weight limit of 10 kg
• Pneumatic System:
  • Gas Type: Air, Oxygen

  • Pressure Range: 280 kPa 600 kPa (40 psi 87 psi)

  • Input Connector: NIST or DISS

  • Pressure Gauge Range: 0 kPa 1000 kPa (0 psi 140 psi)

  • Oxygen Flush Flow Range: 25 L/min 75 L/min
• Flowmeter:
  • Range: 0 L/min 5 L/min

  • Accuracy: <1 L/min: ±0.1 L/min, 1 L/min 5 L/min: 10% of the displayed value
• Anesthetic Vaporizer:
  • Filling Methods: Pour Fill (Isoflurane, Sevoflurane, Enflurane)

  • Weight: 8.0 kg (empty), 8.5 kg (full)

  • Filling Volume: 360 mL (dry wick), 300 mL (moist wick)

  • Concentration Range: 0-6% (Isoflurane, Enflurane), 0-8% (Sevoflurane)
• Anesthetic Gas Scavenging System (AGSS):
  • Active AGSS: Size 500 mm x 150 mm x 120 mm, Pump Rate 80 L/min

  • Passive AGSS: 30 mm OD conical connector
• Anesthetic Breathing System:
  • Leakage: <100 mL/min (under 3 kPa)

  • Connectors: 22 mm OD / 15 mm ID conical for both inhalation and exhalation
• Environmental Specifications:
  • Operation Temperature: 0°C 40°C

  • Storage Temperature: -20°C 55°C

  • Relative Humidity: 15% 95% (operation), 10% 95% (storage)

  • Barometric Pressure: 70 kPa 106 kPa (operation), 50 kPa 106 kPa (storage)
