Veterinary Anesthesia Machine SA-20B Vet

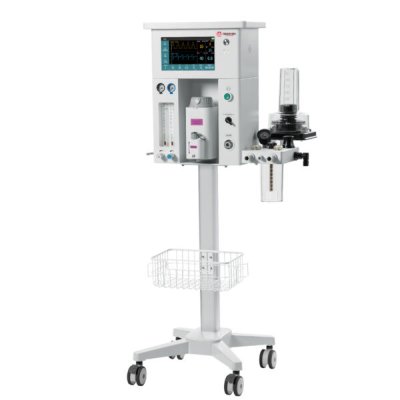

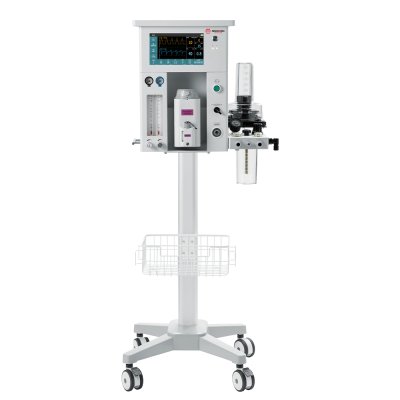

The SA-20B Vet Veterinary Anesthesia Machine by Sinohero is designed to ensure precise and safe anesthesia for animals. This advanced machine features a 10.1-inch adjustable touch screen display, reliable lithium battery with a long run time, and comprehensive monitoring and control capabilities. It supports multiple anesthesia gases and offers adjustable ventilator settings, making it an essential tool for veterinary clinics.

Key Features:

• Lightweight and compact design

• Adjustable 10.1-inch touch screen display

• Long-lasting lithium battery

• Accurate gas and pressure control

• Multiple ventilation modes

• Suitable for various anesthesia gases

SA-20B Vet Veterinary Anesthesia Machine by Sinohero

The SA-20B Vet is a state-of-the-art veterinary anesthesia machine designed to deliver precise and safe anesthesia to animals. This machine is built with advanced technology, ensuring reliability and ease of use in any veterinary setting.

Physical Specifications:

• Dimensions and Weight:
  • Weight: 37 kg

  • Height: 1379 mm

  • Width: 640 mm

  • Depth: 634 mm

  • Castor: 4 castors, 2 with brakes
• Top Shelf:
  • Length: 425 mm

  • Width: 260 mm

  • Weight Limit: 10 kg
• Display:
  • Size: 10.1 inches

  • Resolution: 1024 x 600

  • Brightness: Adjustable (1-5 levels)

  • Touch Screen: Capacitive

  • LED Indicator: 2 (one for AC power and one for operation)

  • Audio Indicator: Speaker with 4-level alarm

Electrical Specifications:

• AC Power Input:
  • Voltage: 220V-240V

  • Frequency: 50/60 Hz
• Internal Batteries:
  • Number of Batteries: 1

  • Battery Type: Lithium battery

  • Rated Battery Voltage: 14.8V

  • Battery Capacity: 2200mAh

  • Minimum Battery Run Time: 60 min (under standard working conditions)

  • Port: RS232

Pneumatic System Specifications:

• Pipeline Supply:
  • Gas Type: Air, Oxygen

  • Gas Supply Pressure Range: 280 kPa 600 kPa (40 psi 87 psi)

  • Input Connector: NIST or DISS

  • Gas Supply Pressure Gauge Range: 0 kPa 1000 kPa (0 psi 140 psi)
• Oxygen Flush:
  • Flow Range: 25 L/min 75 L/min
• Flowmeter:
  • Range: 0 L/min 5 L/min

  • Accuracy: <1 L/min: ±0.1 L/min; 1-5 L/min: 10% of the displayed value

Anesthetic Gas Scavenging System Specifications:

• Breathing System Leakage:
  • Leakage: 100 mL/min (under 3 kPa)
• Connector:
  • Manual bag port: 22 mm OD / 15 mm ID conical

  • Inhalation: 22 mm OD / 15 mm ID conical

  • Exhalation: 22 mm OD / 15 mm ID conical
• CO2 Absorbent:
  • Volume: 500 mL
• APL Valve:
  • Range: 0 cmHO 70 cmHO
• Airway Pressure Gauge:
  • Type: Mechanical

  • Range: -20 cmHO 100 cmHO

  • Accuracy: ±3% of full scale

Anesthetic Vaporizer Specifications:

• Vaporizer:
  • Filling Methods: Pour Fill (Isoflurane, Sevoflurane, Enflurane)

  • Weight: 8.0 kg (empty) 8.5 kg (full)

  • Filling Volume: 360 mL (dry wick), 300 mL (moist wick), 260 mL (between minimum and maximum marks)

  • Concentration Range: 0-6% (Isoflurane, Enflurane), 0-8% (Sevoflurane)

  • Concentration Accuracy Range: 20% 30% of set value or -5% +7.5% of the max value, whichever is greater

  • Vaporizer Base: Single position, Selectatec connecting type


Anesthetic Ventilator Specifications:

• Drive:
  • Pneumatically driven and electronically controlled
• Working Mode:
  • Standby/Manual/ACGO

  • Volume Support (VS)

  • Volume Control Ventilation (VCV)

  • Pressure Control Ventilation (PCV)
• Setting Parameter:
  • Vt: 5 mL 1500 mL

  • Pinsp: 5 cmHO 50 cmHO

  • Plimit: 5 cmHO 50 cmHO

  • PEEP: OFF, 3 cmHO 30 cmHO

  • RR: 2 bpm 60 bpm

  • I:E: 1:1 4:1

  • Ptrig: -20 cmHO 0 cmHO
    • Ftrig: 0.2 L/min 15 L/min

    • Weight: 0.2 kg 100.0 kg

Ventilator Monitoring Parameters:

• Vt: 0 mL 3000 mL

• MV: 0 L/min 100 L/min

• PEAK: -20 cmHO 120 cmHO

• PEEP: 0 cmHO 70 cmHO

• RR: 0 bpm 120 bpm

Ventilator Monitoring Accuracy:

• Vt: <75 mL: ±15 mL; 75 mL: ±20 mL or ±10% of the set value, whichever is greater

• MV: ±0.2 L/min or ±15% of the set value, whichever is greater

• PEAK: ± (2% of full scale + 4% of the readings)

• PEEP: OFF: Do not define 4 cmHO 30 cmHO: ±2.0 cmHO or ±10% of the set value, whichever is greater

• RR: ±1 bpm or ±5% of the set value, whichever is greater

Environmental Specifications:

• Operation:
  • Temperature: 10°C 40°C

  • Relative Humidity (non-condensing): 15% 95%

  • Barometric Pressure: 70 kPa 106 kPa
• Storage:
  • Temperature: -20°C 55°C

  • Relative Humidity (non-condensing): 10% 95%

  • Barometric Pressure: 50 kPa 106 kPa
